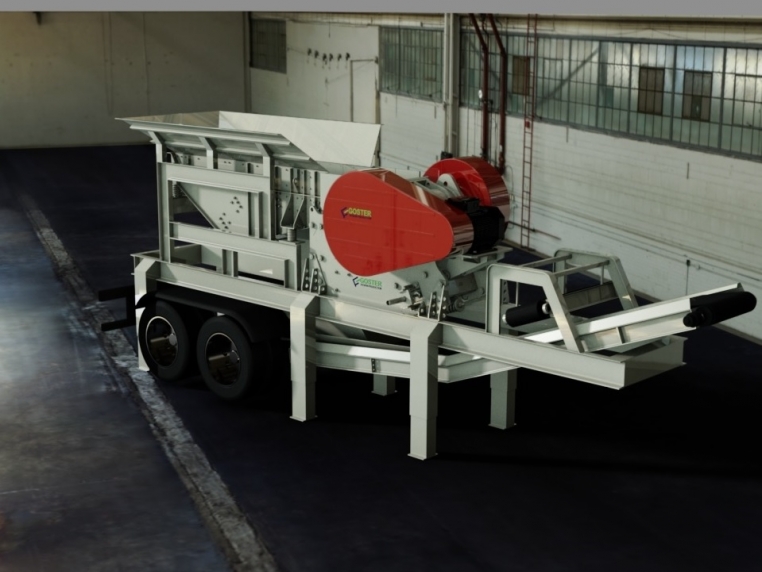

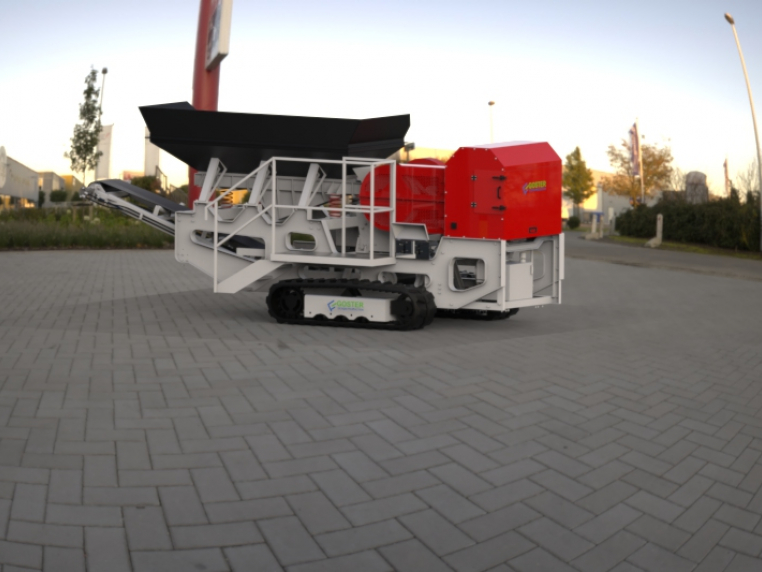

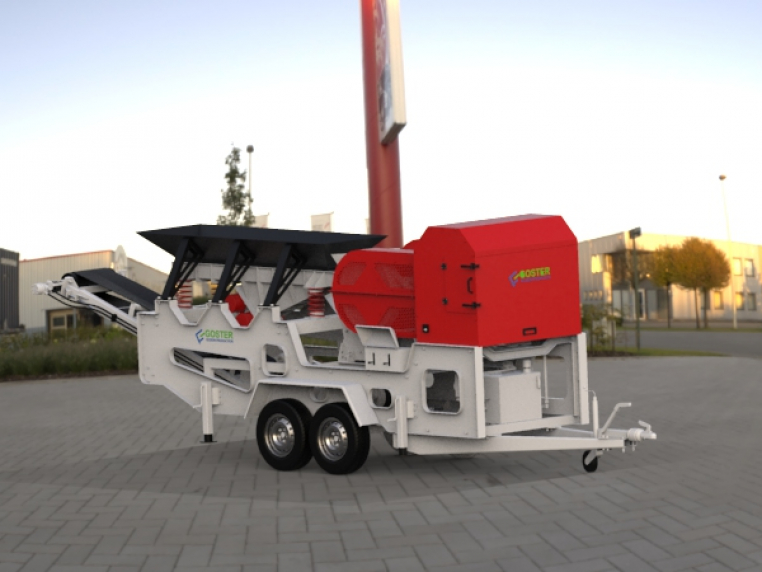

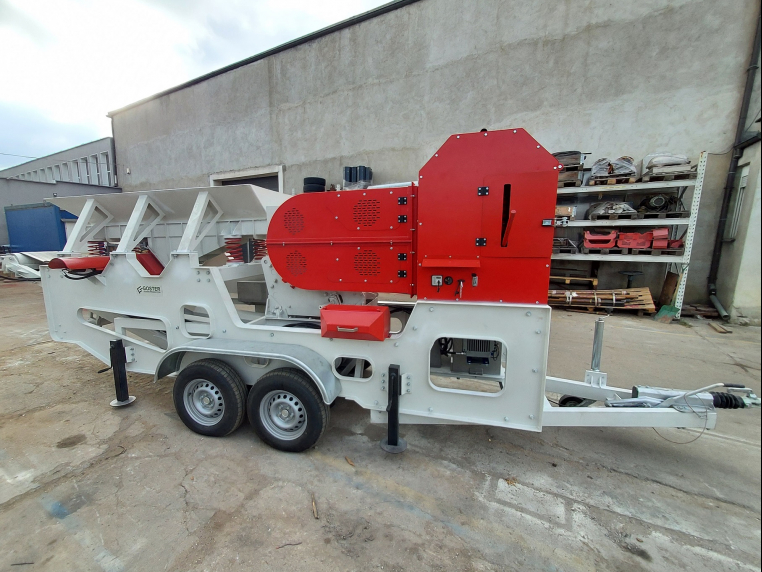

Mobile jaw crushers

Mobile GJW sets are a fruit of international constructors’ design team work. Our designers’ long-standing expertise allowed us to construct sets that are modern, price-wise competitive and have low maintenance costs.

Product catalog



Thanks to using state-of-the-art, cheap in engineering operation and efficient GJ crushers the mobile sets are more economical, reliable and inexpensive when using.


PG Vibrating feeders are used in these sets in order to provide pre-screening of the finer materials on a single or double screen, depending on the customer’s needs, which makes the efficiency of the whole structure way more powerful.

Driving Gears and Operating the machine

There is a possibility to either use electric or combustion driving gears. The set is equipped in a system overload controller , which turns the feeder off following an overload prompt from the crusher.

Magnetic separator

The magnetic separator has been used in order to eliminate all of the non-metallic inclusions.

Longer periods between repairs

The mobile crushers use state-of-the-art construction materials, which prolong the parts’ lifetime cycle and reduce the machine’s weight. Crusher’s spare parts are designed to be easily replaced with small lifting devices, which are usually supplied as accessories for the crusher.


Crusher Input diameter (mm) Gap [mm] Capacity [t/h] (operational value) Power [kW] Weight of the whole set [kg]
GJW-3 300x200 6-30 up to 20 20 3000
GJW-6 600x300 20-70 up to 80 40 7000
GJW-7 700x400 40-110 up to 140 60 14000
GJW-8 800x500 50-125 up to 200 80 17000
GJW-9 900x600 75-150 up to 300 90 21000
