GS crushers are used for crushing soft and medium-hard materials such as limestone, marl, coal, gypsum, sulfur ore, chalk, salt, and fertilizers.
The correct ratio of the cylinder diameter to its length, proper engine power, an option to use different tooth shapes, the selection of appropriate cylinder speed, and the ability to use scrapers for cleaning the cylinders have all contributed to improving the performance of GR crushers.
Thanks to the crusher’s simple modular design it is possible to install the machine in places that are difficult to reach, which reduces the costs of transport and installation.
Overload protection and gap setting. Dzięki zastosowaniu dwóch systemów zabezpieczeń mechanicznego lub hydraulicznego oraz elektrycznego kruszarka zabezpieczona jest przed przeciążeniami oraz materiałami których nie da się skruszyć, istnieje możliwość zastosowania zamiennie dwóch systemów regulacji szczeliny: hydrauliczny-automatyczny sterowany z pulpitu maszyny oraz ręczny.
Thanks to many years of experience in machine construction and repair we were able to design crushers easier to assemble and disassemble.
Longer periods between repairs
The GH crushers use state-of-the-art construction materials, which prolong the parts’ lifetime cycle and reduce the machine’s weight. The over-sized bearings applied in our crushers allow for their longer failure-free operation. Crusher’s spare parts are designed to be easily replaced with small lifting devices, which are usually supplied as accessories for the crusher.

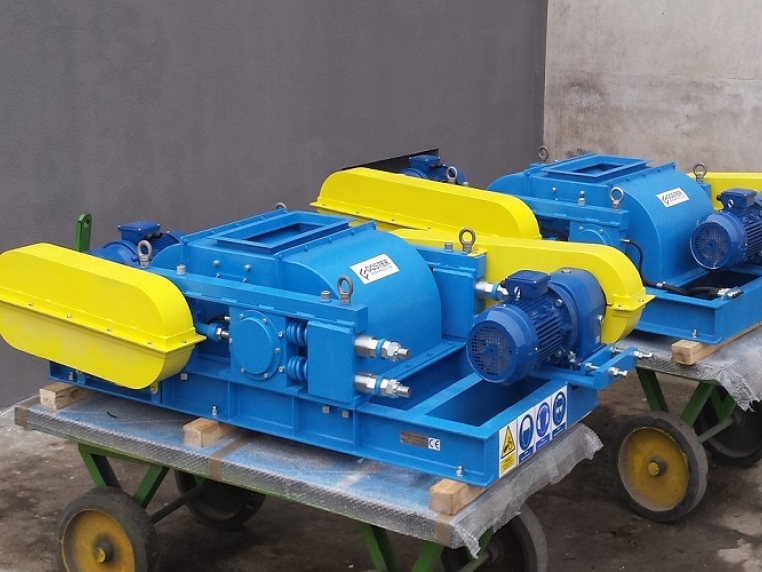

GENERAL PURPOSE CYLINDER CONE CRUSHERS
|Crusher||Rotor motor’s dimensions [mm]||Gap [mm]||Capacity [m3/h]||Power [kW]|
|GR-45||ø400x500||3-15||up to 12||2x5,5|
|GR-65||ø600x500||5-40||up to 20||2x11|
|GR-88||ø800x800||15-80||up to 50||2x30|
|GR-820||ø800x2000||25-80||up to 70||2x30|
|GR-105||ø1000x500||2-50||up to 35||2x22|
|GR-1010||ø1000x1000||15-100||up to 150||2x37|
|GR-1212||ø1200x1200||30-150||up to 250||2x45|
|GR-1515||ø1500x1500||40-200||up to 320||2x60|
